New Equipment » Cub Cadet » LTX 1050
Model Quick Search

$2,249.00

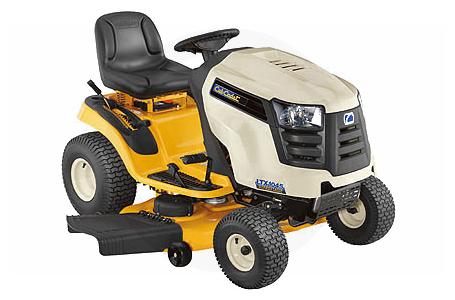

2010 Cub Cadet LTX 1050
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Full-pressure lubrication w/spin-on oil filter. Easy access makes routine maintenance quick and easy.
  • Hydrostatic transmission w/cruise control provides durable, reliable power and a smoother ride on these riding lawn mowers.
  • 50 in. QuickAttach™ deck.
  • Exclusive Smart Jet™ Deck Wash System. High pressure water cleans out grass and debris build-up under the deck.
  • RevTEK™ Reverse Mowing Technology allows mowing in forward or reverse until the operator of the riding lawn mower leaves the tractor seat, turns the key back to normal or turns off engine.
  • Electronic fingertip engagement for smooth operation of deck or attachments
Specifications
  • Engine: 22 HP Kohler® Courage® V-Twin OHV
  • Cylinders/Material: 2/cast-iron sleeve
  • Lubrication: Fully pressurized automotive-style oil pump w/spin-on oil filter
  • Drive System: Automatic w/heavy-duty hydrostatic pump with oil drain port
  • Engine to Transmission: Heavy-duty Kevlar® belt
  • Cruise Control: Standard
  • Transmission Housing: Die cast aluminum
  • Steering: Manual sector & pinion
  • Front Axle: Heavy-duty cast-iron w/dual grease fittings - 5-year limited warranty
  • Spindles: 3/4 in. with grease fittings
  • Ball Joints: 2 automotive-style
  • Rear Axle Diameter: 3/4 in. diameter with dual steel wheel drive hubs
  • Turning Radius: 12 in.
  • Chassis Type: Robotically welded steel frame assembly - 5-year limited warranty
  • Frame: Heavy-duty 9-gauge steel - 5-year limited warranty
  • Hood & Grill: Corrosion and dent resistant high-impact ABS
  • Fender & Bumper: Steel fender w/twin rear fender flares w/grab handles and glove box
  • Alternator: 15 amp. regulated
  • Battery: 12 volt heavy-duty 190 cold crank amp.
  • Charging System: Flywheel alternator
  • Headlights: Standard
  • System Monitor Package: Digital hour meter, change oil service minder, battery voltage monitor, park brake and PTO start sequence LED's
  • Safety Systems: Neutral start, operator presence, reverse safety switch, brake pedal lock, RevTEK™
  • PTO Clutch: Fingertip electronic engagement for smooth operation of deck or attachments
  • Deck Lift: Manual/12-position
  • Brakes: Automotive-style disc
  • Seat: High-back seat, 12-positions with 6 seat travel
  • Cutting Width/Blades: 50 in. heavy-duty triple blades
  • Front Tires: 15 in. x 6 in.
  • Rear Tires: 20 in. x 10 in.
  • Forward Speed: 0-5.2 mph
  • Reverse Speed: 0-2.3 mph
  • Fuel Tank: 3.5 gal. easy-fill, large opening, rustproof
  • Engine Oil: 1.9 qt.
  • Transmission Oil: 2.0 qt.
  • Wheelbase: 47.5 in.
  • Overall Length: 69 in.
  • Estimated Weight w/Deck: 548 lbs
  • Deck Cutting Height: 1.5 in. - 4 in.
  • Mower Deck Construction: 12-gauge steel
  • Mower Drive System: Heavy-duty Kevlar® belt
  • Anti-Scalping: 4 wheels
  • Mulch Kit: Optional
  • Deck Spindles: Die cast aluminum spindle housings w/ball bearings and grease fittings for long life
  • Deck Pulleys: All steel with heavy-duty bearings
  • Deck Attach/Removal: QuickAttach™ in seconds, no tools required
  • Deck Wash: Patented Smart Jet™ high-pressure deck washing system
  • Warranty: 3-year/120-hour & 5-year/500-hour limited
Attachments
  • 42 in. Snow Thrower
  • 50 in. Triple Bagger
  • 25 Gallon Sprayer
  • 46 in. Dozer Blade
  • Broadcast Spreader
  • 10 cu. ft. Poly Cart
  • 40 in. Tow Behind Lawn Plug Aerator
  • 40 in. Tow Behind Lawn Spike Aerator
  • 48 in. Tow Behind Poly Lawn Roller
  • 50 in. Mulch Kit
  • Wheel Weights
  • Tire Chains (20 in. x 10 in.)
  • 42 in. Lawn Sweeper
  • Front Bumper
  • 40 in. Tow Behind Lawn Dethatcher
  • Back Pack Blower
  • String Trimmer
  • Push Mower

Specifications

Engine
Engine Manufacturer Kohler
Horse Power 22 hp
Engine Type Kohler® Courage® V-Twin OHV
General
Transmission Automatic w/heavy-duty hydrostatic pump with oil drain port
Wheel Size Front: 15 in. x 6 in.; Rear: 20 in. x 10 in.
Fuel Capacity 3.5 gal.
Deck
Deck Size 50 in.
Discharge Type Side; Optional: Mulch Kit

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model LTX 1050
Style Riding
MSRP* $2,249.00
Deck
Deck Size 50 in.
Discharge Type Side; Optional: Mulch Kit
Engine
Engine Manufacturer Kohler
Horse Power 22 hp
Engine Type Kohler® Courage® V-Twin OHV
Displacement
General
Transmission Automatic w/heavy-duty hydrostatic pump with oil drain port
Wheel Size Front: 15 in. x 6 in.; Rear: 20 in. x 10 in.
Fuel Capacity 3.5 gal.
