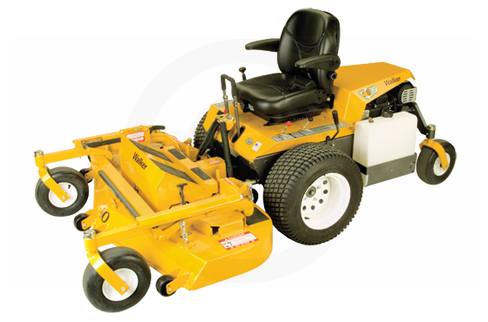

2010 Walker Super BTractor
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Tilt-up body and deck for easy maintenance
  • Proven steering-a combination of Forward Speed Control (FSC) and steering levers
  • Deep deck design delivers Walker’s trademark precision cut using torsion- flex frame
  • Deck height manually adjusts up to 5” from the seat using a foot pedal
  • Contoured seat with full suspension actiOn adjusts fore and aft for operator comfort
  • 27 hp Kohler Command, air-cooled engine
  • Cummins Filtration OptiAir remote air filter for extended engine life
  • Dual, independent Hydro-Geor IZT 2800 transaxles
  • Lever-actuated PTO uses mechanical clutch/brake for mower blades
  • Manual PTO clutch and brake
  • Designed specifically for side discharge or mulching
  • 60 in. cutting width Commercial & Institutional Use
  • Remote air intake
  • Dual tail wheels (extra flotation)
Engine Specifications
  • Manufacturer/Model: Kohler Command V-Twin, 2-Cylinder
  • Displacement: 44 cu. in. (725 cc)
  • HP/RPM: 27 hp @ 3600 rpm
  • Max Torque Itt-lb (N.m) RPM: 42.7 ft./lbs. (57.9 Nm) @ 3000 rpm
  • Fuel: Gasoline (Unleaded - 87 Octane minimum)
  • Fuel Capacity: 10 gal. (38 l), two independent 5 gal. tanks w/ selector valve
  • Cooling System Lubrication System: Air
  • Muffler: Full pressure with filter
Electrical System
  • Battery: 12 volt (340 cca)
  • Charging System: 15 amp alternator
  • Ignition: Electronic capacitive discharge
  • Starter: 12 volt electric, key and solenoid operated
  • Interlock Switch System: Ignition lockout by seat switch, transmission neutral and blade clutch
Tractor Drive
  • Transmission/Final Drive: Dual. independent Hydro-Gear integrated transaxles
  • Steering: Hand lever control indivicluol drive wheel
  • Forward Speed Control : Precision friction lock level cruise control with neutral park position
  • Brake: Dynamic braking through transaxles
  • Parking Brake: Mechanical lockout for each transaxle (single lever control)
  • Ground Speed: 0-9 mph forward, 0-5 mph reverse, infinitely variable
  • Turning Radius: Zero (0)
Mower Deck
  • Cutting Width: 60 in. side discharge
  • Cutting Height: 1 in. to 5 in. (2.54 cm to 12.7 cm), 1/4 in. (.635 cm) increments
  • Blade: 0.197 in. Stomped Steel, 10B38 Alloy, tempered
  • Maximum Blade Speed: 3200 rpm (18300 fpm w/20-1/2 in. blade)
  • Blade Drive: Splined PTO drive shaft, 2 high speed u-joints
  • Blade Clutch and Brake: Manual mechanical clutch/brake
  • Deck Suspension: Torsion-Flex frame with caster wheels and counterweight springs
Construction
  • Frame/Body: 3/16 in. plate steel, 14 gauge sheet steel
  • Mower Deck: 11 gauge welded steel
  • Seat: Contour-molded with nylon backed vinyl cover and integral foam cushion
Tire Size
  • Deck Caster Wheel: Standard pneumatic 13 x 5.0-6
  • Drive: 22 x 10.50-12
  • Rear Tire: 13 x 8.50-6
Dimensions
  • Outside Dimensions: 43-1/4in. (110cm) H x 62 in. (157.5 cm) W x 10-1/4 in. (255cm) L
  • Wheel Base (Tractor): 42-5/8 in. (109 cm)
  • Tread Width (Tractor): 36-1/2 in. (93 cm)
Curb Weight (approx)
  • Tractor Only: 730 lbs. (331 kg)
  • Tractor and Mower: 1110 lbs. (503 kg)
Compatibility
  • Deck: DSD6O

Specifications

Engine
Engine Manufacturer Kohler
Horse Power 27 hp
Engine Type 2-Cylinder
Displacement 44 cu. in. (725 cc)
General
Transmission Dual, independent Hydro-Gear integrated transaxles
Wheel Size Deck Caster Wheel: Standard pneumatic 13 x 5.0-6, Drive: 22 x 10.50-12, Rear Tire: 13 x 8.50-6
Fuel Capacity 10 gal. (38 l), two independent 5 gal. tanks w/ selector valve
Deck
Deck Size 60 in.
Discharge Type Side

Compare Models

 Print








Year 2010
Manufacturer Walker Mowers
Model Super BTractor
Style Riding
Deck
Deck Size 60 in.
Discharge Type Side
Engine
Engine Manufacturer Kohler
Horse Power 27 hp
Engine Type 2-Cylinder
Displacement 44 cu. in. (725 cc)
General
Transmission Dual, independent Hydro-Gear integrated transaxles
Wheel Size Deck Caster Wheel: Standard pneumatic 13 x 5.0-6, Drive: 22 x 10.50-12, Rear Tire: 13 x 8.50-6
Fuel Capacity 10 gal. (38 l), two independent 5 gal. tanks w/ selector valve
