2010 Walker Model MC Tractor w/48 in.Grass Handling Deck
Request a Quote Financing Calculator Request a Brochure

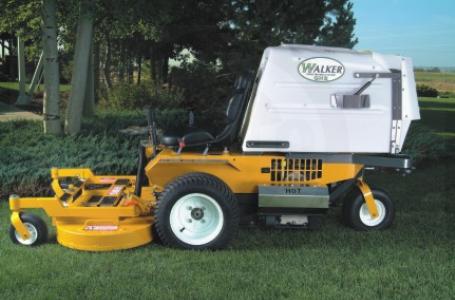

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 20-HP Kohler Command engine
  • Remote air intake
  • Manual PTO clutch and brake
  • Dual hydro-axle
  • 48 in. Grass Handling Deck (GHS)
  • 9.5 bushel catcher with GHS option (6.7 bushel catcher optional)
  • 10.5 in. GHS Blower
  • Splined PTO drive shaft speeds deck and attachment installation
  • Low-profile drive tires (10" wheel)
  • Low oil pressure warning light
Specifications
  • Manufacturer/Model: Kohler CH20 2 cyl
  • Displacement: 624 cc (38.0 cu. in.)
  • HP/RPM: 20 hp @ 3600 rpm
  • Max Torque: 32 hp @ 2500 rpm
  • Fuel: Gasoline (unleaded)
  • Fuel Capacity: 3.0 gal. (11.4 l)
  • Cooling System: Air
  • Lubrication System: Full pressure w/filter
  • Muffler: Engine Tuned (Lo Tone)
  • Battery: 12 volt (230 cca)
  • Charging System: 15 amp alternator
  • Ignition: Electronic capacitive discharge
  • Starter: 12 volt electric, key and solenoid operated
  • Interlock Switch System: Ignition lockout by seat switch, transmission neutral and blade clutch
  • Transmission: Dual Hydrostatic Eaton Model 7, each wheel independently driven
  • Steering: Hand lever control, individual drive wheel
  • Forward Speed Control: Precision friction lock lever, cruise control, w/neutral-park position
  • Brake: Dynamic braking through hydrostatic transmission
  • Parking Brake: Standard
  • Final Drive: Gear Drive Axle
  • Ground Speed: 0-5 mph infinitely variable (forward or reverse)
  • Turning Radius: Zero (0)
  • Cutting Width: 48 in.
  • Cutting Height: 1 in. to 4 in. (2.54 cm to 10.6 cm), 1/2 in. (1.27cm) increments
  • Blade: 0.164 in. stamped steel, 1566 HR Alloy, tempered
  • Max Blade Speed: 2900 rpm (16700 fpm w/ 22 in. blade)
  • Blade Drive: Splined PTO drive shaft, 2 high speed u-joints, shear pin for shock protection on timed gear drive on deck
  • Blade Clutch & Brake: Manual belt tightener/scrubber brake
  • Deck Suspension: Torsion-Flex frame w/caster wheels and counterweight springs
  • Frame/Body: All welded unitized steel frame, 14 Ga steel body shell
  • Mower Deck: 11 Ga welded steel
  • Seat: Contour-molded w/nylon backed vinyl cover and integral foam cushion
  • Deck Caster Wheel: Standard: 2.80/2.50-4 Pneumatic (4 Ply), Optional 8.25 x 2.75 Semi-Pneumatic
  • Drive: 18 x 8.50-10
  • Rear Tire: 13 x 6.50-6
  • Outside Dimensions: 49-1/2 in. H x 43 in. W x 89 in. L
  • Wheel Base (Tractor): 42-1/2 in.
  • Tread Width (Tractor): 29-3/4 in.
  • GHS Tractor Weight (approx): 753 lbs.
  • Tractor and Mower Weight (approx): 954 lbs.
  • GHS Catcher & Chutes: Molded Cross-Linked Polyethylene (high impact Material, UV Stabilized) Blower: 4.5 x 10.5 x 1/2 three blade steel, paddle wheel Max Blower Speed: 4000 Grass Catcher Capacity: 9.5 Bushel (335 l), Optional: 6.7 Bushel (238 l) Full Signal: 12 volt horn operated by Oscillating Vane Switch on grass delivery spout Powerfil: Oscillating Delivery Spout Spreads material inside catcher
Factory Installed Options
  • Comfort seat
  • Suspension seat
  • 6.7 bushel catcher on GHS Model
  • Extra wide, low-profile drive tires
  • All-Terrain drive tires
Compatible Implements
  • Implement Hitch
  • Rotary Broom
  • Loader Bucket
  • Two-Stage Snowblower
  • Dozer Blade
  • Debris Blower
  • Perfaerator™
Compatible Attachments
  • Boom Sprayer
  • Dethatcher
  • Coulter Blade Edger
  • Curb Jumper Ramp
Dealer Installed Options
  • Operator Soft Cab
  • Mechanical Deck Lift
  • Case-Hardened Blower
  • Armrests
  • Headlights
Compatible Accessories
  • Tail Weight
  • Tire Chains
  • Dump Bag
  • No-Catch Deflector
  • GHS Blower Lockout
  • Removable Bins for 9.5 Catcher Box
  • Exhaust Screen with Large Holes

Specifications

Engine
Engine Manufacturer Kohler
Horse Power 20 hp
Engine Type CH20 2 cyl
Displacement 624 cc (38.0 cu. in.)
General
Transmission Dual Hydrostatic Eaton Model 7, Each Wheel Independently Driven
Wheel Size Deck Caster Wheel: Standard: 2.80/2.50-4 Pneumatic (4 Ply), Optional 8.25 x 2.75 Semi-Pneumatic, Drive: 18 x 6.50-8, Rear Tire: 13 x 6.50-6
Fuel Capacity 3.0 gal. (11.4 l)
Deck
Deck Size 42 in.
Discharge Type Grass Handling (GHS)

Compare Models

 Print








Year 2010
Manufacturer Walker Mowers
Model Model MC Tractor w/48 in.Grass Handling Deck
Style Riding
Deck
Deck Size 42 in.
Discharge Type Grass Handling (GHS)
Engine
Engine Manufacturer Kohler
Horse Power 20 hp
Engine Type CH20 2 cyl
Displacement 624 cc (38.0 cu. in.)
General
Transmission Dual Hydrostatic Eaton Model 7, Each Wheel Independently Driven
Wheel Size Deck Caster Wheel: Standard: 2.80/2.50-4 Pneumatic (4 Ply), Optional 8.25 x 2.75 Semi-Pneumatic, Drive: 18 x 6.50-8, Rear Tire: 13 x 6.50-6
Fuel Capacity 3.0 gal. (11.4 l)
