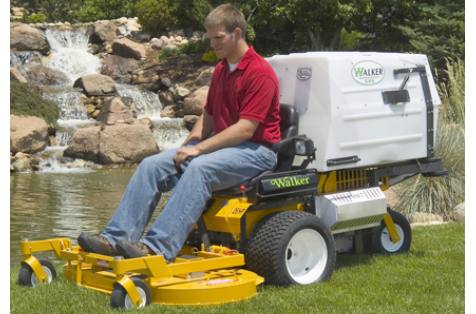

2010 Walker Model MT Tractor w/48 in. Side Deck-Kohler 23 hp
Request a Quote Financing Calculator Request a Brochure
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 23 hp Kohler OHV V-Twin engine
  • Remote air intake
  • Shock mounted instrument panel with warning lights and horn, also includes ignition switch, light switch (opt), voltmeter and hourmeter
  • Manual PTO clutch and brake
  • Dual hydro-axle
  • Dual tail wheels (extra flotation)
  • Splined PTO drive shaft speeds deck installation
Specifications
  • Manufacturer/Model: Kohler CH23, 2 cyl
  • Displacement: 675 cc (41 cu. in.)
  • HP/RPM: 23 hp @ 3600 rpm
  • Max Torque: 37.9 ft./lbs. @ 2400 rpm
  • Fuel: Gasoline (unleaded)
  • Fuel Capacity: 5 gal. (19 l)
  • Cooling System: Air
  • Lubrication System: Full pressure w/filter
  • Muffler: Engine Tuned (Lo Tone)
  • Battery: 12 volt (230 cca)
  • Charging System: 15 amp alternator
  • Ignition: Electronic Ccpacitive discharge
  • Starter: 12 volt electric, key and solenoid operated
  • Interlock Switch System: Ignition lockout by seat switch, transmission neutral and blade clutch
  • Transmission: Dual Hydrostatic Eaton Model 7, each wheel independently driven
  • Steering: Hand lever control, individual drive wheel
  • Forward Speed Control: Precision friction lock lever, cruise control, w/neutral-park position
  • Brake: Dynamic braking through hydrostatic transmission
  • Parking Brake: Standard
  • Ground Speed: 0-5 infinitely variable (forward or reverse)
  • Turning Radius: Zero (0)
  • Cutting Width: 48 in.
  • Cutting Height: 1 in. to 4 in. (2.54 cm to 10.6 cm), 1/2 in. (1.27cm) increments (DSD52/62 are 1-1/2 in. to 4-1/2 in.)
  • Blade: 0.164 in. stamped steel, 1566 HR Alloy, tempered
  • Max Blade Speed: 2900 rpm (16700 fpm w/ 22 in. blade)
  • Blade Drive: Splined PTO drive shaft, 2 high speed u-joints, shear pin for shock protection on timed gear drive on deck (DSD62 has 3 Belt Driven Spindles)
  • Blade Clutch & Brake: Manual belt tightener/scrubber brake
  • Deck Suspension: Torsion-Flex frame w/caster wheels and counterweight springs
  • Frame/Body: All welded unitized steel frame, 14 Ga steel body shell
  • Mower Deck: 11 Ga welded steel
  • Seat: Contour-molded w/nylon backed vinyl cover and integral foam cushion
  • Deck Caster Wheel: Standard: 2.80/2.50-4 Pneumatic (4 Ply), Optional 8.25 x 2.75 Semi-Pneumatic
  • Drive: 18 x 9.50-8
  • Rear Tire: Dual 13 x 5.00-6
  • Outside Dimensions: 49 H x 43 W x 88 L
  • Wheel Base (Tractor): 42-1/4 in.
  • Tread Width (Tractor): 29-3/4 in.
  • SD Tractor Weight (approx): 664 lbs.
  • Tractor and Mower: 1010 lbs.
Factory Installed Options
  • Hi-Dump™
  • Power Dump
  • Comfort seat
  • Suspension seat - standard on Liquid-Cooled Models
  • Tail Wheel Lock
  • Single Wide Tail Wheel
  • Extra wide, low-profile drive tires
  • All-Terrain drive tires
Compatible Implements
  • Implement Hitch
  • BedShaper®
  • Rotary Broom
  • Loader Bucket
  • Two-Stage Snowblower
  • Dozer Blade
  • Debris Blower
  • Perfaerator™
  • Chipper
Compatible Attachments
  • Boom Sprayer
  • Dethatcher
  • Coulter Blade Edger
  • Curb Jumper Ramp
Dealer Installed Options
  • Operator Soft Cab
  • Power Deck Lift
  • Speed Up Kit
  • Cold Start Kit
  • Mechanical Deck Lift
  • Case-Hardened Blower
  • Armrests
  • Headlights
Compatible Accessories
  • Tail Weight
  • Tire Chains
  • Dump Bag
  • Instrument Panel Cover
  • Exhaust Screen with Large Holes

Specifications

Engine
Engine Manufacturer Kohler
Horse Power 23 hp
Engine Type CH23, 2 cyl
Displacement 675 cc (41 cu. in.)
General
Transmission Dual Hydrostatic Eaton Model 7, Each Wheel Independently Driven
Wheel Size Deck Caster Wheel: Standard: 2.80/2.50-4 Pneumatic (4 Ply), Optional 8.25 x 2.75 Semi-Pneumatic, Drive: 18 x 6.50-8, Rear Tire: 13 x 6.50-6
Fuel Capacity 5 gal. (19 l)
Deck
Deck Size 48 in.
Discharge Type Side Discharge

Compare Models

 Print








Year 2010
Manufacturer Walker Mowers
Model Model MT Tractor w/48 in. Side Deck-Kohler 23 hp
Style Riding
Deck
Deck Size 48 in.
Discharge Type Side Discharge
Engine
Engine Manufacturer Kohler
Horse Power 23 hp
Engine Type CH23, 2 cyl
Displacement 675 cc (41 cu. in.)
General
Transmission Dual Hydrostatic Eaton Model 7, Each Wheel Independently Driven
Wheel Size Deck Caster Wheel: Standard: 2.80/2.50-4 Pneumatic (4 Ply), Optional 8.25 x 2.75 Semi-Pneumatic, Drive: 18 x 6.50-8, Rear Tire: 13 x 6.50-6
Fuel Capacity 5 gal. (19 l)
