New Equipment » Cub Cadet » Z-Force® S 48 Zero Turn Rider
Model Quick Search

$4,699.00

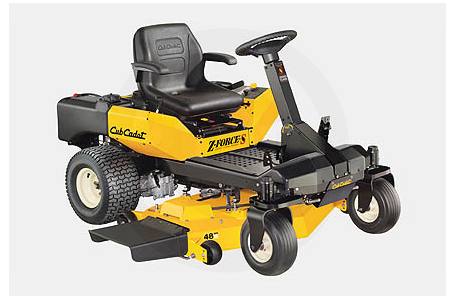

2010 Cub Cadet Z-Force® S 48 Zero Turn Rider
Request a Quote Financing Calculator Request a Brochure

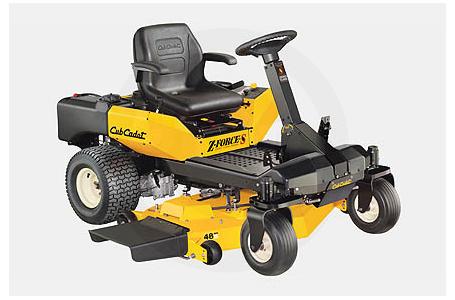

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • 22 HP Kawasaki® FR Series V-Twin engine delivers efficient power for reliable starting and exceptionally smooth, quiet operation.
  • Full-pressure lubrication w/spin-on oil filter. Easy access makes routine zero turn riding mower maintenance quick and easy
  • Dual hydrostatic transmission with dedicated rear wheel transmission for effortless zero-turning capability.
  • 48" floating/fabricated deck
  • Exclusive Smart Jet™ Deck Wash System. High pressure water cleans out grass and debris build-up under the deck of your zero turn riding mower.
  • Electric PTO for smoother deck engagement.
  • Synchro Steer™Technology - the steering wheel controls both the front wheels and the independently controlled back wheels for greater maneuverability, tracking and stability.
Engine
  • Engine Type: 22 HP Kawasaki® FR Series V-Twin
  • Cylinders: 2/cast iron sleeve
  • Engine Start: Electric
  • Engine Lubrication: Fully pressurized automotive-style oil pump w/spin-on oil filter
Drive system
  • Transmission: Dual EZT
Steering
  • Steering: Steering wheel with tilt column
Chassis
  • Frame: 1.5" x 3.0" box, fully welded steel
  • Front Axle: Fabricated steel, pivoting
  • Front Wheel Bearings: Steel
Electrical System
  • Alternator: 15 amp. regulated
  • Battery: 275 cold cranking amps
  • Safety Systems: Operator presence
Operation
  • PTO Clutch: Fingertip electronic engagement
  • Deck Lift: Foot pedal
  • Seat: High-back w/arm rests and compression spring
  • Parking Brake: Disc
  • Hour Meter: Standard electronic
Additional Specifications
  • Front Tires: 13" x 5" - 6"
  • Rear Tires: 18" x 9.5" - 8"
  • Forward Speed: 0 - 7 mph
  • Reverse Speed: 0 - 4 mph
  • Turning Radius: Zero
  • Fuel Tank Capacity: 5 gal.
  • Engine Oil Capacity: 2 qt.
  • Cup Holder w/Utility Bin: Standard
  • Wheelbase: 43"
  • Overall Length: 75"
  • Width: 49.25"
  • Estimated Weight: 716 lbs
Mowing Deck
  • Cutting Width / Blades: 48" triple blade 3-in-1
  • Cutting Height: 1" - 4"
  • Deck Construction: 11-gauge, floating/fabricated w/sloped nose
  • Deck Drive System: Belt driven, Kevlar®
  • Anti-Scalping: 4 greasable gauge wheels
  • Greasable Spindles: Standard
  • Deck Wash: Patented SmartJet™ high pressure deck washing system
  • Accessories: Optional mulch kit/optional bagger
Warranty
  • Warranty: The Z-Force S 48 Zero Turn Lawn Mower has a 3-year/180-hour limited warranty

Specifications

Engine
Engine Manufacturer Kawasaki®
Horse Power 22 Hp
Engine Type FR Series V-Twin engine
General
Transmission Dual EZT
Wheel Size Front Tires: 13" x 5" - 6", Rear Tires: 18" x 9.5" - 8"
Fuel Capacity 5 gal.
Deck
Deck Size 48" FAB Deck
Discharge Type Side

Compare Models

 Print








Year 2010
Manufacturer Cub Cadet
Model Z-Force® S 48 Zero Turn Rider
Style Riding
MSRP* $4,699.00
Deck
Deck Size 48" FAB Deck
Discharge Type Side
Engine
Engine Manufacturer Kawasaki®
Horse Power 22 Hp
Engine Type FR Series V-Twin engine
Displacement
General
Transmission Dual EZT
Wheel Size Front Tires: 13" x 5" - 6", Rear Tires: 18" x 9.5" - 8"
Fuel Capacity 5 gal.
